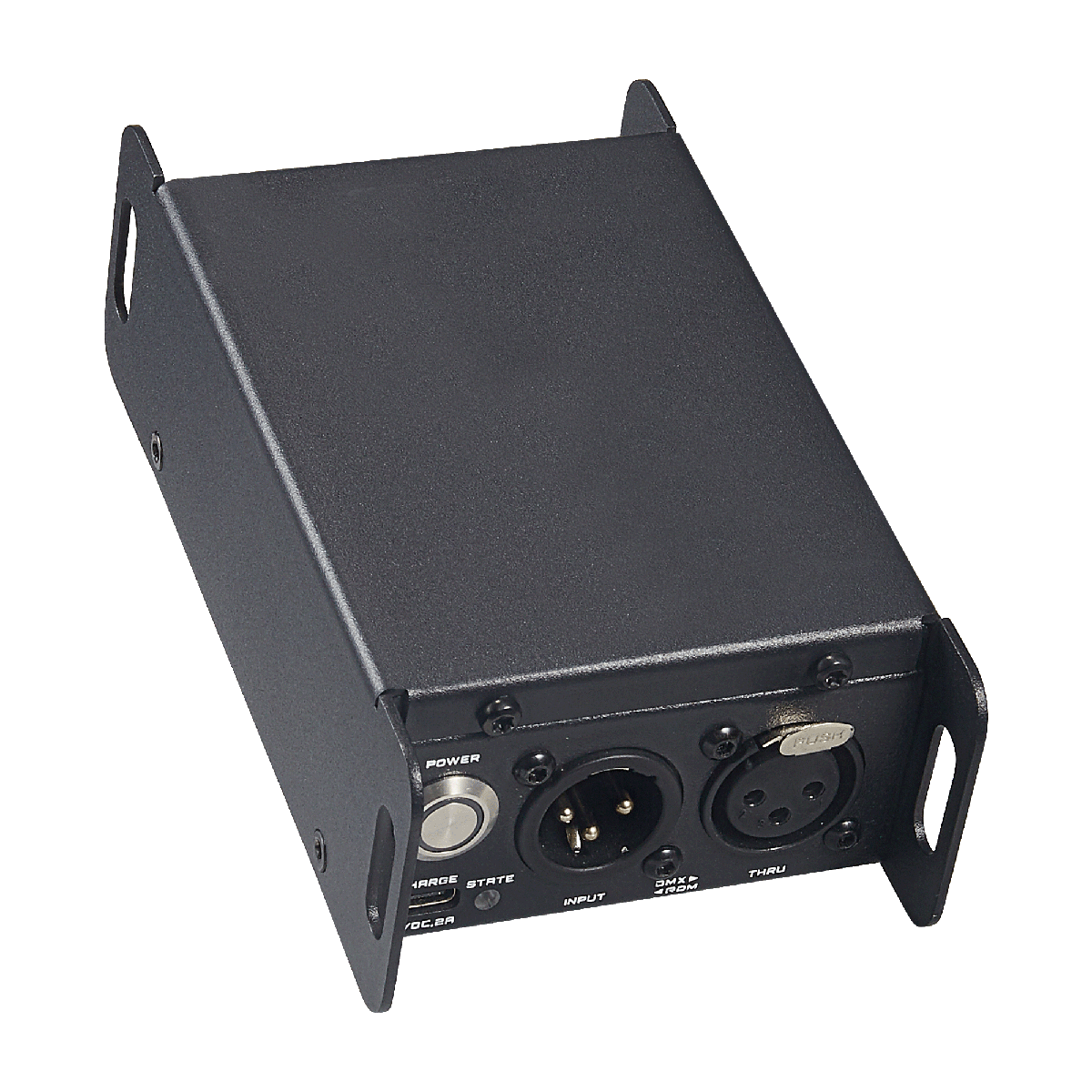

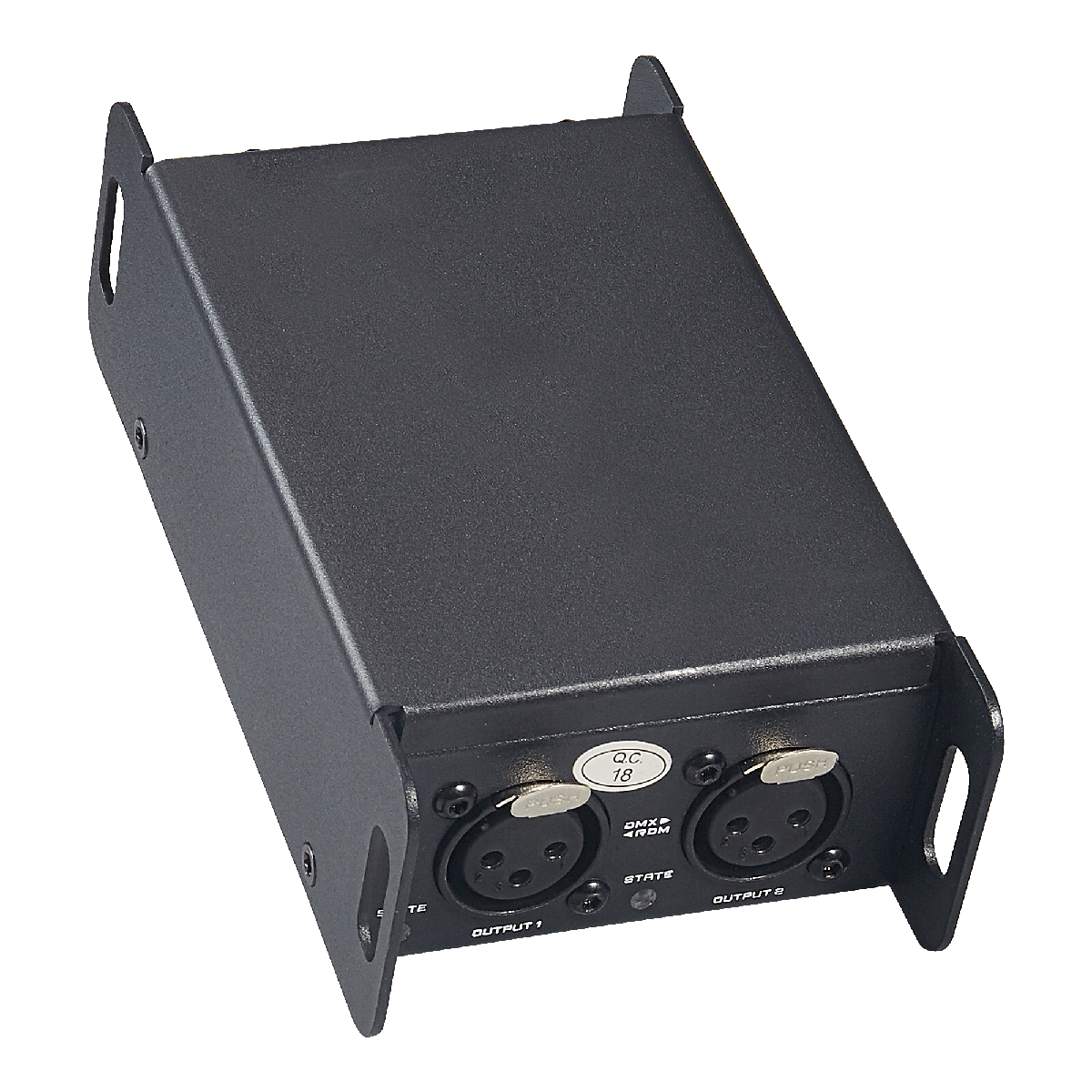

RDM Splitter 2


Ordercode:RS2

DR-2 Portable is a professional portable intelligent node with built-in 2500mAh lithium battery . All inputs and outputs are individually optical and electronic isolation to ensure that signals will be distributed and regenerated in the most optimal quality, with strong anti-interference ability and stable signal control. Each DMX port is equipped with RGB LED indicator lights and signal loss indication function, providing a more intuitive display and better user experience.

Features and Specifications:

DMX、RDM support
All DMX Ports are individually optical and electronic isolation technology
Portable design, easy to carry
Work Voltage:5VDC,2Amax. 
Power consumption:1.3Wmax. 
Built-in lithium battery
Battery Capacity:2500mAh/3.7V,9.25Wh
Charging hours:2-3 Hours(5V/2A)
Working hours:8 Hours max. 
Power Socket:USB-C
Size:135*75.5*43.5mm/5.3*2.97*1.7in(W*H*D)
N.G:0.5Kg
Operating temperatrue range:0-40℃
