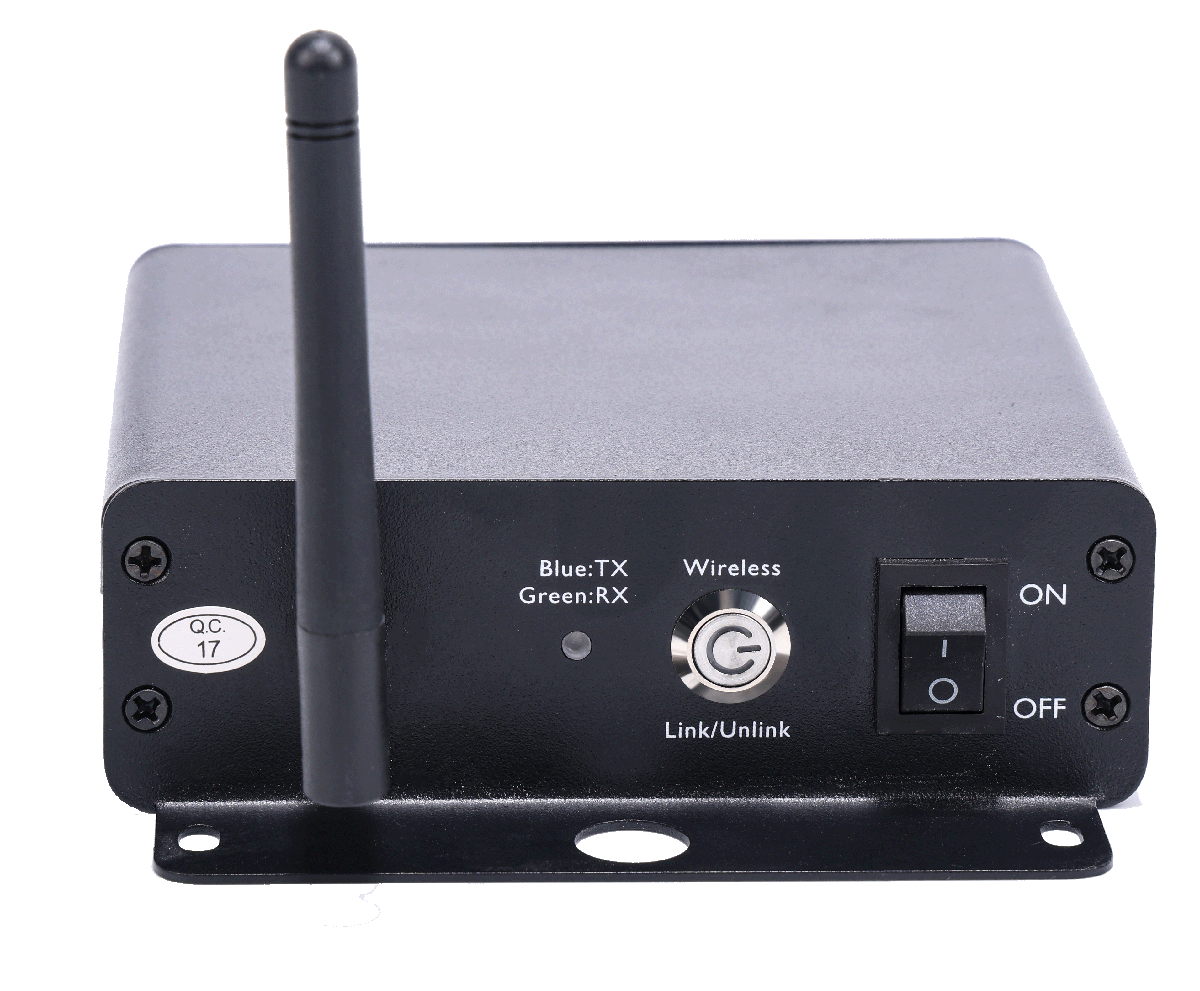

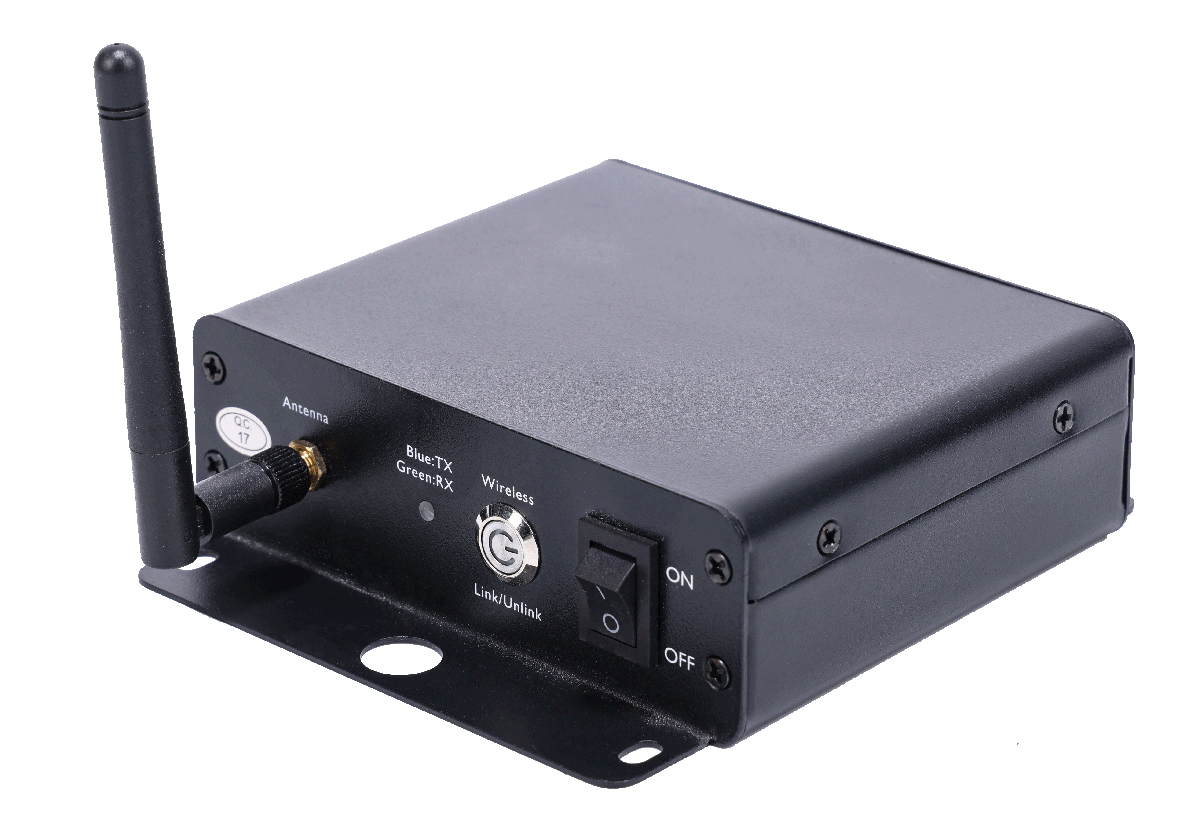

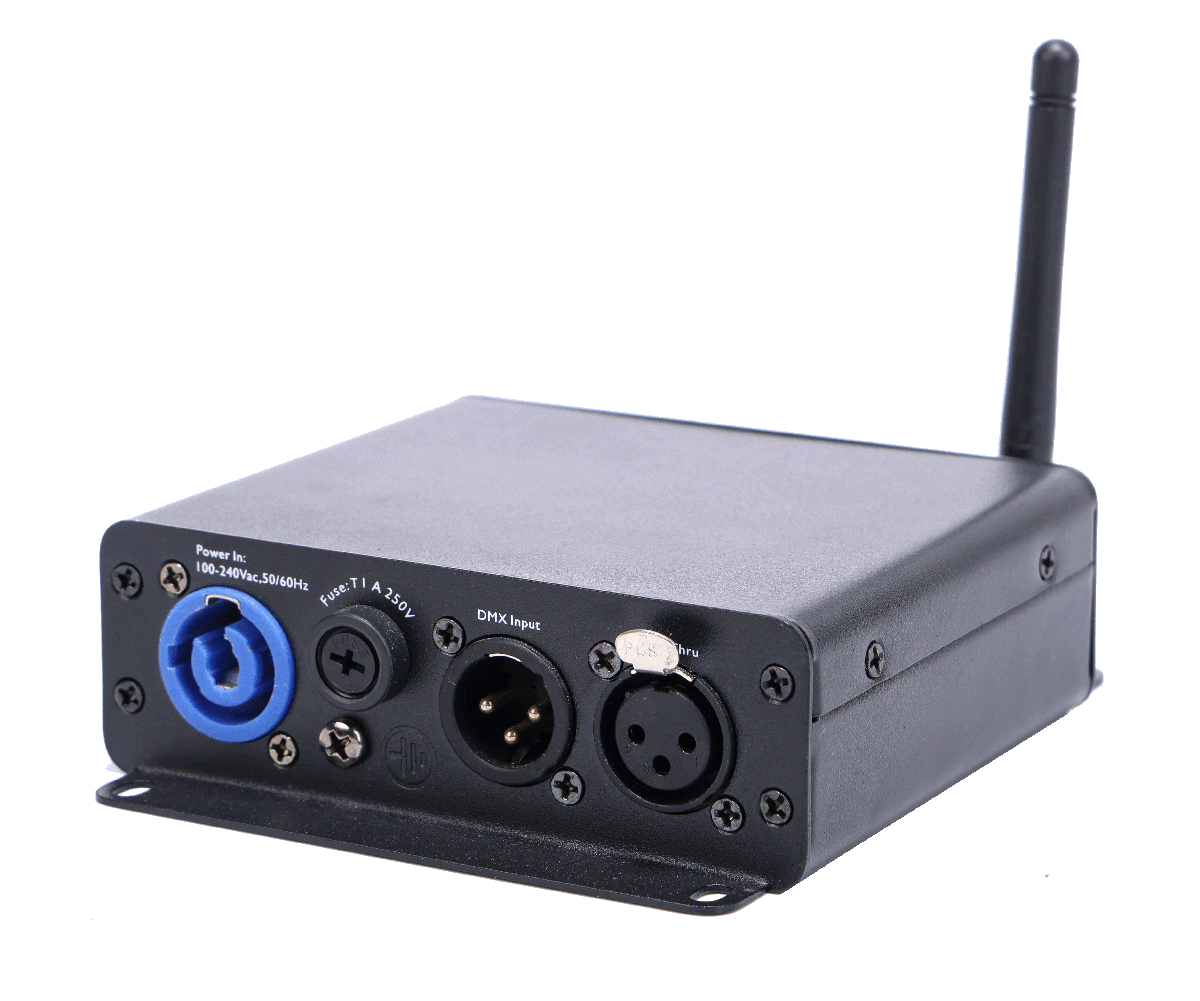

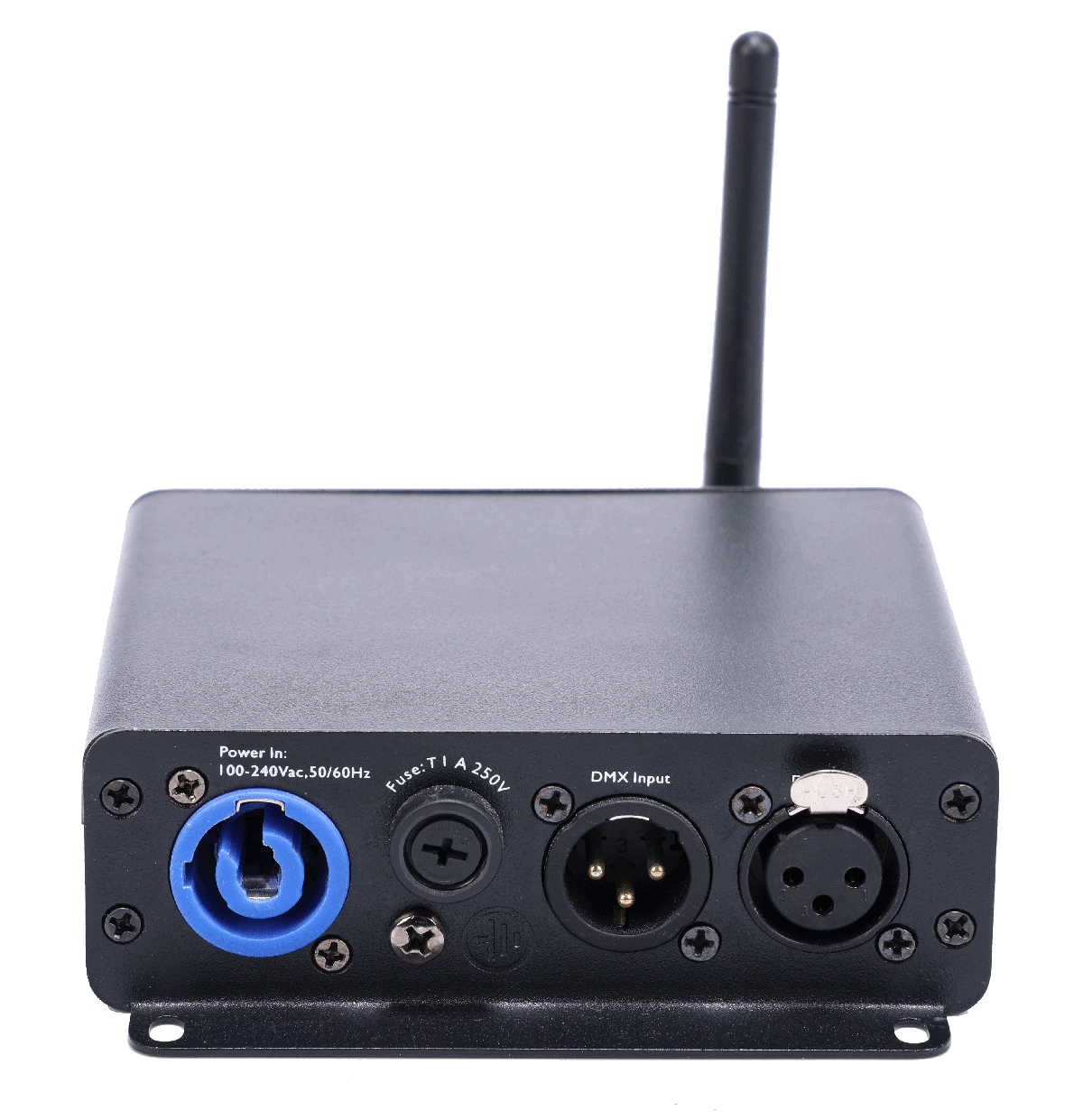

Wireless DMX512


Ordercode:W512

  The TW512 is a universal Wireless DMX-512 distributor.It is designed to distribute the incoming DMX/Wireless DMX signal.Air protocol ,circuit connections and structural dimensions are fully compatible with Wireless Solution,FHSS with 79
Channels,interference-free operation.Automatically learning of various parameters of controller,just like DMX transfer via cable. TW512 is Transceiver integrated,single button operation,RGB three-color LED indication,simple and convenient.

Features and Specifications:


 Input voltage: 100-240Vac, 50/60Hz
 Power consumption: 5W
 Wireless DMX 512 channels
 Wireless Frequency:2.4GHz
 Power Connections: PowerCon In
 DMX Ports: 3-pin/DMX IN, 3-pin/DMX THRU
 Fuse: T1A/250V(UR、VDE、CCC)
 Dimensions: 136 x 120 x 40 mm (LxWxH)
 Weight: 1 kg
