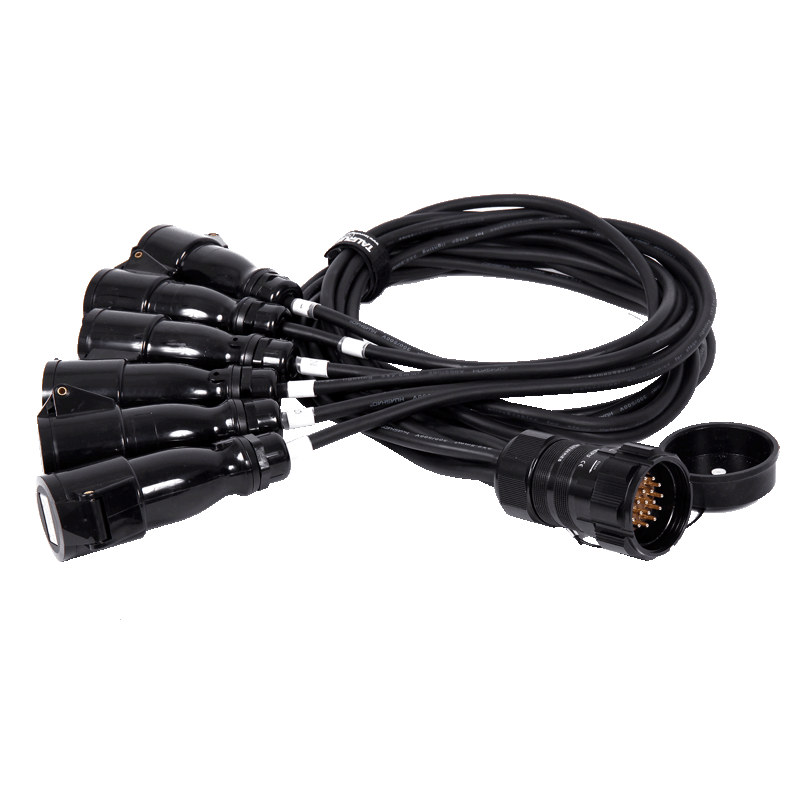

16A Male – Socapex 19-Pin Female 2.5mm Fan-In Cable


Ordercode:SP-BO1.5CEE

   High quality, rental-ready Socapex cables with KUPO 19-Pin UL certified Socapex connectors. The rugged design has been tailored specifically for professional touring and stage lighting applications, The cables are finished with a short length of clear heatshrink ready for identification to be added.
Features and Specifications:
- Stagepart 3x2.5mm cable
- Kupo 19-Pin connectors complete with 6-way cable gland
- 6 x CEE 16A 3P connector (Powercon True1, Edison plug, Powercon,IEC,etc optional)
- Clear heatshrink suitable for identification or asset label
- Socapex male to female plug or socapex female to male plug optional
- Bare copper conductors
- Operating temperature range: -25 to 55°C
- Maximum conductor temperature in service: 90°C
- Multi-point gold plated contacts
- Individual tail length: 1.5m (Other length optional)
- With cable tie for each cable
